An Inference Trail To Chordal Graphs [Graphic]

Part Of: [Advanced Inference In Graphical Models] sequence

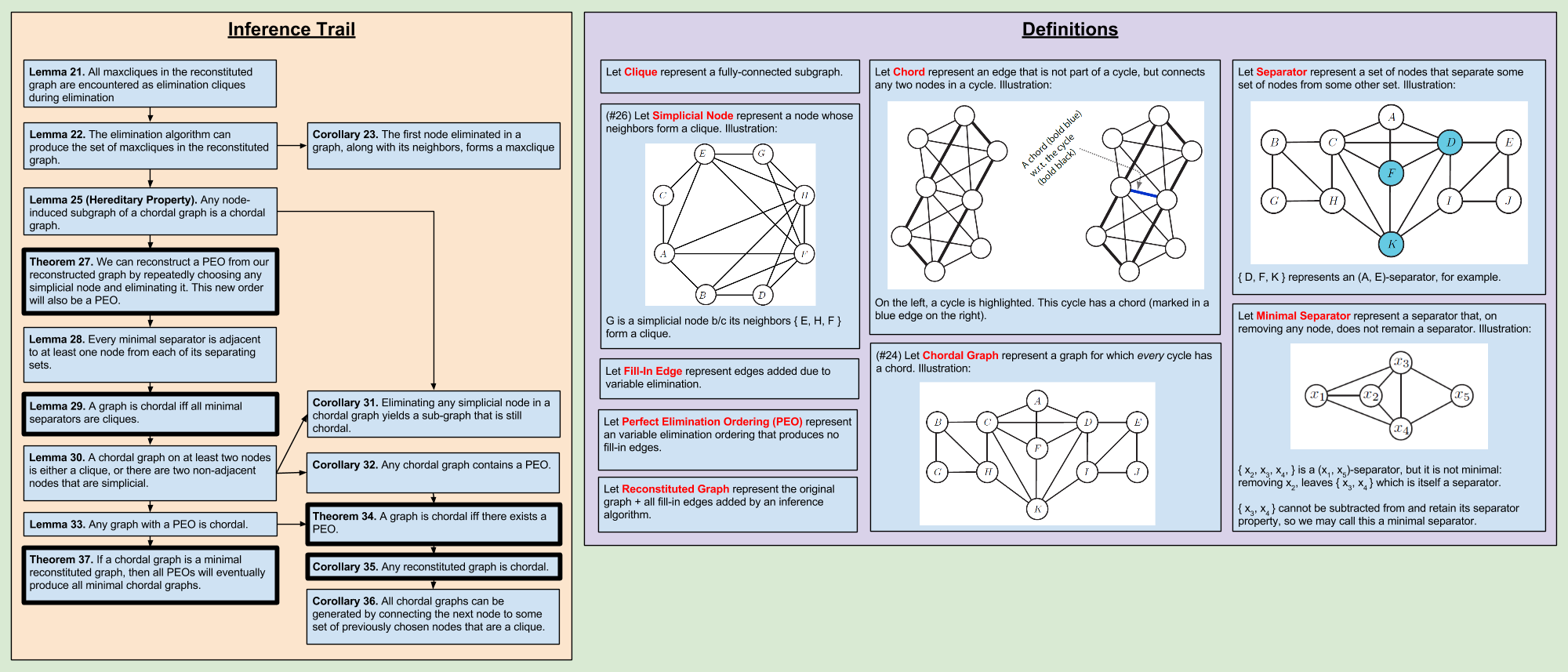

I made this infographic while studying the relationship between chordal graphs and perfect elimination orderings.

Results I found particularly useful have their edges bolded. Enjoy!
